Achieving Higher C&I Solar Power by Addressing Hidden Inverter Imbalances

Oversizing DC arrays is a standard design choice to maximize inverter utilization, but without periodic calibration, it creates a massive operational blind spot. Slight mismatches in string configurations, uneven degradation, and localized shading routinely throw multi-inverter C&I systems out of balance, resulting in chronic, hidden clipping losses. Over time, these inefficiencies frequently compound into single- or double-digit performance penalties that manual monitoring simply cannot catch. This article explores how smart solar analytics isolate these hidden cross-inverter performance drifts, turning invisible losses into clear, resolvable action items for O&M teams. This is the essence of predictive maintenance applied to the specific use case of C&I solar systems, precisely when one or more solar inverters operate below their maximum power capacity due to connection limitations.

The Hidden Cost of Inverter Imbalance in C&I Solar Systems

In Commercial and Industrial (C&I) solar installations, maximizing ROI relies heavily on the synergy between oversized DC arrays and multiple inverters. However, a critical vulnerability is frequently overlooked: these complex configurations are seldom calibrated for optimal power performance after the installation.

Because DC arrays are typically oversized to maximize inverter utilization, slight mismatches in string configuration, uneven degradation, or localized shading can throw the entire system out of balance. This lack of precise calibration typically results in a chronic loss of a few percent in clipped power - a margin that operators often dismiss as standard operational variance.

In more severe cases, this efficiency gap widens dramatically. As solar arrays age, the original balancing becomes obsolete, and degradation occurs at unequal rates across the site. Consequently, these power losses can escalate into double-digit percentages, quietly eroding the asset's financial viability over time.

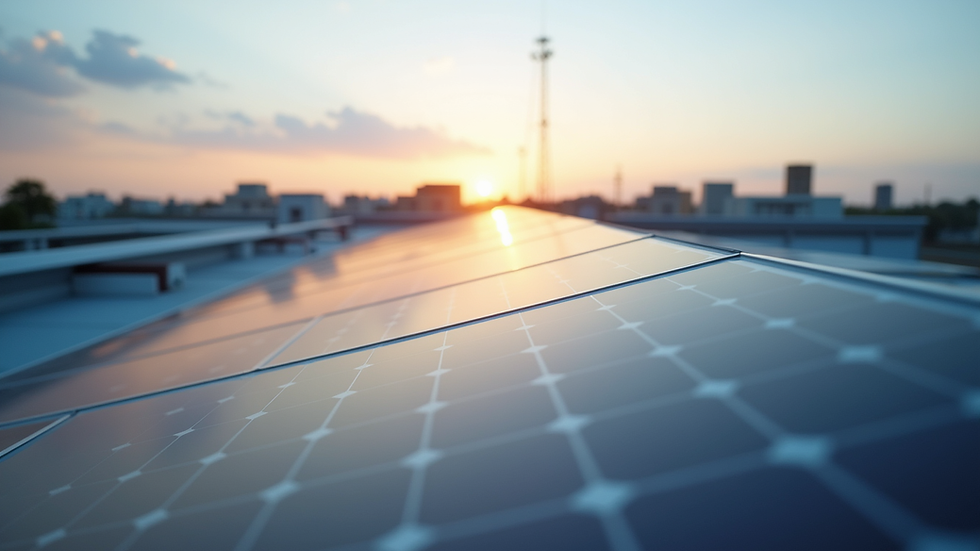

Eye-level view of solar arrays installed on a commercial rooftop.

The Failure of Conventional Performance Monitoring in Detecting Inverter Imbalances

Detecting these nuanced balance inconsistencies is virtually impossible with conventional, manual monitoring workflows or basic yield alerts. Traditional monitoring tools look for acute or even catastrophic failures (like a completely dead inverter), but they remain blind to the subtle, cross-inverter performance drifts and complex clipping patterns that signal a systemic imbalance.

A few percent of potential power loss is basically invisible in this approach, resulting in missed yields, especially when concentrated in certain seasons of the year. Identifying these inverter imbalances requires sophisticated high-accuracy performance analytics and advanced pattern recognition capable of normalizing environmental variables to isolate the true system potential at any given time.

Automated Inverter Imbalance Diagnostics via SysMap

Soltell’s SysMap solution bridges this capability gap. With a significant track record of detecting deep-seated inverter and array imbalances, SysMap continuously analyzes system topology and power output to pinpoint emerging imbalance patterns. Instead of missing the untapped solar potential of each energy system, SysMap translates complex data into clear, resolvable action items.

What is Inverter Imbalance?

Smart detection of solar inverter imbalance refers to the use of advanced algorithms and either manual predictive maintenance methods or remote energy management tools to optimize the power performance of solar inverters. This involves:

• Monitoring C&I solar inverters for imbalance patterns in real-time

• Distributing load evenly across multiple inverters upon array current drifts

• Adjusting inverter settings dynamically (manually or remotely)

Example: Real-World C&I Solar Power Imbalance Detection & Resolution

To understand how these invisible imbalances manifest and how they are corrected, we can look at a typical commercial rooftop installation analyzed by Soltell's SysMap in the Mediterranean region during May 2025. The site features a commercial PV system with a 68 kWac grid connection capacity, paired with an oversized 78.84 kWdc solar array split across three inverters. Shortly after the connection of the site to SysMap solar analytics, the pattern-recognition algorithms flagged a distinct system performance anomaly with a clear seasonal inverter imbalance pattern.

Because the DC array was oversized to maximize the 68 kWac bottleneck, the system was sensitive to DC distribution mismatches. Over time, slight variances in string degradation and obsolete original array balancing had caused one inverter to clip prematurely, while the other under-utilized its available DC capacity - a drift that performance monitoring entirely missed because the aggregated site output masked the individual inverter inefficiencies. Effectively, the combined system power had failed to exceed 60 kWac on ideal sunny days, even though it could have theoretically been feasible.

Guided by SysMap’s precise diagnostic data, the O&M manager bypassed tedious troubleshooting and executed a targeted electrical recalibration of the three inverters and their respective default inverter settings. The impact was immediate: by restoring optimal balance across the system architecture and eliminating the hidden imbalance losses, the system increased its combined power output by 10%. For a commercial asset owner, capturing a two-digit efficiency boost without investing in new hardware or expensive maintenance represents pure bottom-line revenue recovery.

The described use-case where SysMap identified a multi-inverter imbalance and provided actionable steps for O&M to rebalance the inverters - resulting in up to 15% peak power increase.

Implementing Smart Inverter Balancing

By optimizing inverter performance and ensuring even load distribution, smart solar inverter balancing notably increases efficiency, resulting in reduced system degradation and higher overall energy yields over the system's lifetime. This balanced operational load simultaneously reduces wear and tear, prolonging the physical lifespan of the solar inverters. Ultimately, these localized improvements enhance overall system stability, delivering a more reliable energy system that provides the superior predictability required for precise asset and energy management. By leveraging this technology and method, businesses can reduce operational costs, minimize carbon footprints, and enhance system resilience.

Smart dynamic balancing of solar inverters represents a significant advancement in energy system lifecycle, contributing to greater resilience and efficiency in solar energy systems. By leveraging technology, we can maximize the potential of renewable energy sources and move towards a more sustainable future.

For more information on high-accuracy solar performance analytics for ideal C&I inverter balancing — contact us or book a free live demo to see the full integration flow.
